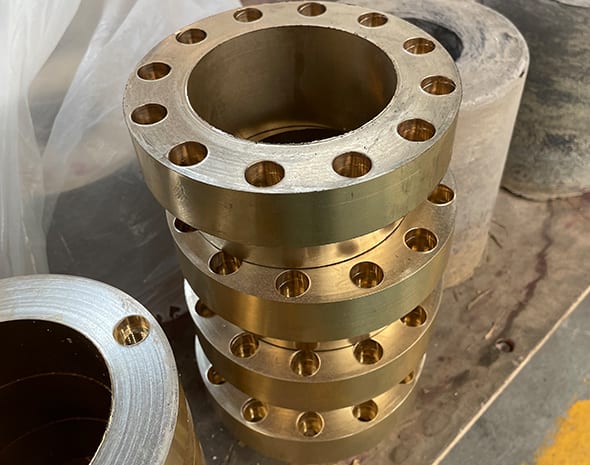

Drill Bushing Bronze Sleeve for Mining Equipment
Custom-cast bronze drill bushings for mining and heavy equipment, machined to drawing with matched alloy grades and in-house composition and hardness checks.
Drill bushings guide rotating tooling and shafts in drilling and rock-handling equipment, where misalignment and abrasive fines quickly damage ordinary wear parts. We cast and machine these bushings as one integrated process, so the bore, flange and locating faces stay concentric with the alloy structure you specify. Whether you need a replacement for a worn OEM part or a new design from a drawing, the geometry and material are matched to your application.
Design & materials
Bronze drill bushings are usually specified in tin bronze or leaded tin bronze for moderate loads and good machinability, while aluminum bronze and manganese bronze are chosen where impact and heavy abrasion are present. Common grades include C93200 (SAE 660), C93700, C95400, C86300 and C90700, and we can cast to a named grade or match the original part's composition. Wall thickness, lubrication grooves, oil holes and flange dimensions are produced to your drawing.
- Cast to drawing or reverse-engineered from a worn sample
- Centrifugal casting for denser walls on cylindrical parts
- Sand or metal mold casting for flanged and non-standard shapes
- In-house CNC machining of bore, OD and flange faces
- Spectrometer composition check and hardness testing before shipment
Typical applications
These bushings are used in drilling rigs, crusher and mill assemblies, pump and valve bodies, and general heavy equipment pivot points. In many mining applications the bushing runs with limited lubrication, so alloy choice and groove design matter as much as the casting itself. See our bronze bushings for mining and the full bushing range for related configurations.
Manufacturing & inspection
We run centrifugal, sand and metal mold casting in one foundry, then machine and inspect in the same facility. Each batch is checked for chemical composition and hardness, and dimensions are verified against the drawing before packing. If you are unsure which grade suits your duty, our team can review the operating conditions with you.
Send your drawing or a worn sample for a free evaluation.
Materials
Industries
Procurement facts
| MOQ | Samples from 1 pc; batch orders quoted per drawing |
|---|---|
| Tolerance | Machined to drawing tolerances |
| Lead time | Confirmed at quotation, per drawing and quantity |
Specifications
| Material grades | C93200 (SAE 660), C93700, C95400, C86300, C90700, or matched to sample |
|---|---|
| Casting process | Centrifugal casting, sand casting, metal mold casting |
| Size range | Castings from 20 mm to 6000 mm diameter, 0.1-15000 kg; specific parts made to drawing |
| Machining | In-house CNC machining to drawing |
| Inspection | Spectrometer composition check, hardness testing |
| Customization | OEM replacement, per drawing or sample |
