Crusher Copper Pad | Custom Bronze Wear Plates

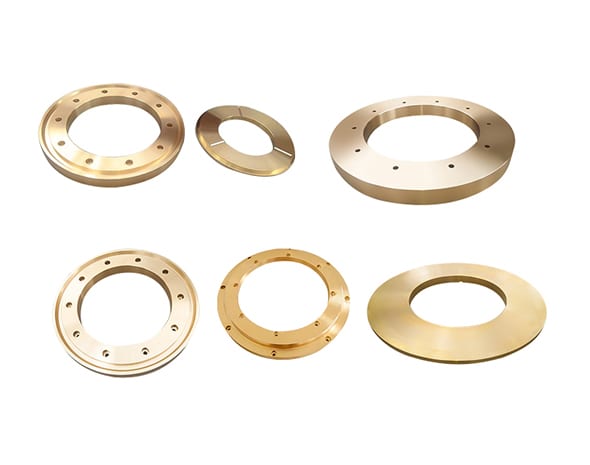

Crusher copper pads are flat bronze wear components used where a machine needs a replaceable bearing surface rather than a full bushing. They sit between sliding or seating faces, absorb load and abrasion, and are usually the part that is renewed first during a rebuild. Because pad geometry is tied to the housing it fits, most pads are made to drawing or reverse-engineered from a worn original.

Design & materials

Pad material is selected against load, sliding speed, lubrication and the counterface it runs on. Common choices include C93200 (SAE 660) tin bronze for general medium-load service, C93700 where dirt or grit is present, and C95400 aluminium bronze where impact and abrasion dominate. Hardness, wall thickness and oil grooves are set to suit the application rather than a single stock size.

• Made to drawing, or measured and copied from a worn sample
• Flat, stepped, grooved and drilled pad forms
• Material matched to the original specification where required
• OEM replacement and non-standard sizes available

Typical applications

Copper pads are found in crusher seating and adjustment areas, on cone and jaw crusher frames, in construction machinery pivot and slide points, and in pump, valve and hydraulic assemblies where a bronze face protects a more costly casting. See the crusher bronze parts range and the wider bronze bushing category for related components.

Manufacturing & inspection

Pads are produced by sand casting, centrifugal casting or metal mold casting depending on shape and quantity, then finished by in-house CNC machining to the drawing. Each batch is checked by spectrometer composition analysis and hardness testing before dispatch. Send your drawing or a worn sample for a free evaluation.
